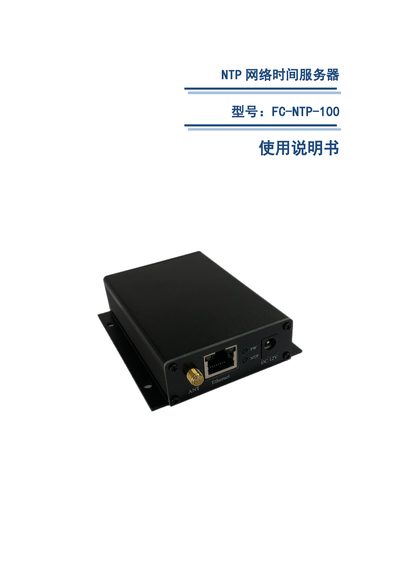

The NTP FC‑NTP‑100 Network Time Server User Manual provides installation, configuration, and operation instructions for the device.
The NTP FC‑NTP‑100 is a compact network time server that receives UTC time from GNSS satellite constellations and distributes it over TCP/IP using NTP/SNTP protocols. It supports Ethernet 10/100 Mbps, multiple GNSS constellations, and offers synchronization accuracy of 0.5‑2 ms.
The manual covers product features, physical dimensions, interface descriptions, IP configuration via dedicated software, and detailed technical specifications such as power consumption (1 W) and operating temperature range (-40 °C to 85 °C). This manual is written in Chinese.
| CPU | Cortex‑M4, 120 MHz |
|---|---|
| Power Consumption | 1 W |
| Network Interface | 10/100 Mbps Ethernet RJ‑45 |
| Supported GNSS Constellations | GPS, Beidou, GLONASS, Galileo, QZSS |
| Synchronization Accuracy | 0.5‑2 ms |
| Operating Temperature | -40 °C to 85 °C |
| Input Voltage | 6 V‑24 V DC |
| Dimensions | 80 mm × 23.8 mm × 90 mm |
The device consumes only 1 W of power.
It supports GPS, Beidou, GLONASS, Galileo, and QZSS.
