Technical specifications for NQYZ series gas‑liquid pressure amplifiers and related gas source treatment components.
This document provides the technical parameters for a range of gas‑liquid pressure amplifiers and gas source treatment components, including the NQYZ series, AC1000~6000 series, AC1010~4010 series, and various filter and pressure valve series. Each entry lists the applicable standards, operating temperature range, pressure ranges, filter precision, regulation range, and valve type.
The data are organized by component family, allowing engineers to quickly compare performance characteristics such as maximum allowable pressure, filter micron rating, and temperature limits for selection and system design in pneumatic and hydraulic applications. This manual is written in Chinese.
| NQYZ series working temperature range | 5 °C ~ 60 °C |
|---|---|
| NQYZ series usage pressure range | 0.2 ~ 0.7 MPa |
| AC1000~6000 series filter precision | 5 μm |
| AF series maximum allowable pressure | 1.5 MPa |
| AR series regulation range | 0.05 ~ 0.85 MPa |
The AF series air filter has a filter precision of 5 μm.
The AC1000~6000 series triple unit operates between –5 °C and 60 °C.

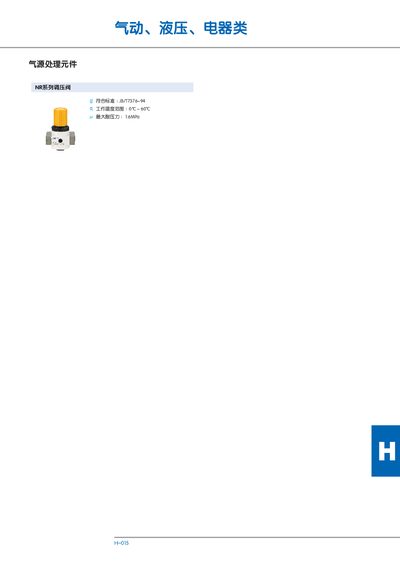

The NR series pressure valve can tolerate up to 1.6 MPa.
The AR series uses a valve with an overflow type.
