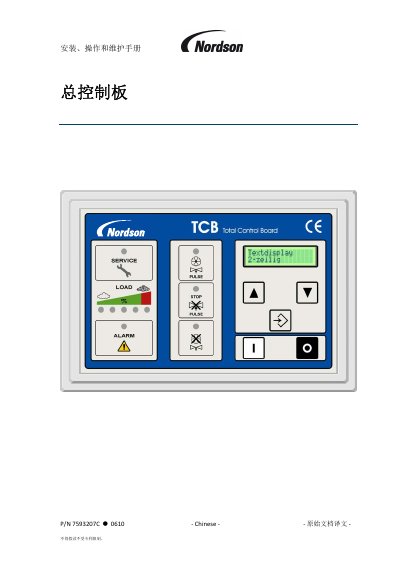

This manual provides installation, operation, and maintenance instructions for the Nox Total Control Board (P/N 7593207C), covering electrical connections…
The document is a user guide for the Nox Total Control Board (TCB), part number P/N 7593207C. It details the installation of the control board within auxiliary filter systems, including requirements for electrical wiring, pneumatic connections, and safety precautions such as working in isolated power conditions.
The manual covers operational procedures for single and multi-fan auxiliary filter systems (e.g., ECB devices). It explains how to use the LCD display and menu system to configure parameters like Delta P limits, cleaning cycles, and alarm settings. Additionally, it provides information on maintenance tasks, fault location via alarm messages, and technical specifications. This manual is written in Chinese.
| Max valves (parallel mode) | 32 valves |
|---|---|
| Max valves (serial multi-module system) | 96 valves |
| Communication interface | RS-485 bus |
| Standard cable length to auxiliary filter | 10 m |
The control board's pneumatic sensor line length should not exceed 20 m to ensure reliable signals.
