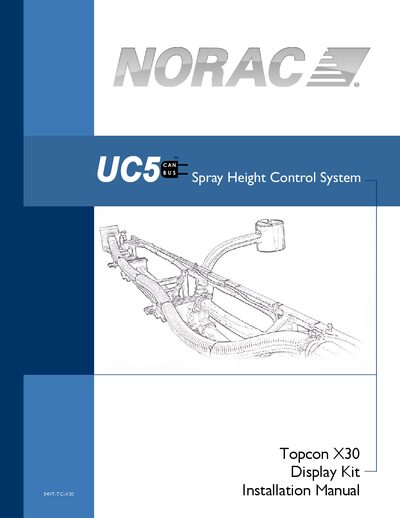

Installation manual for the NORAC Systems Topcon X30 Display Kit, covering parts, specifications, wiring and setup for the UC5 spray height control system.
The Topcon X30 Display Kit manual provides step‑by‑step instructions for installing the display kit in conjunction with the UC5 Spray Height Control System. It lists required parts, technical specifications, and wiring diagrams needed to integrate the display with the sprayer’s control module.
The document includes a parts list, detailed technical specifications (voltage, current, pressure limits, communication settings), installation procedures for the CANbus interface and switch box, cable drawings, and an appendix for alternate configurations on European‑style sprayers.
| Supply Voltage (rated) | 12VDC |
|---|---|
| Supply Current (rated) | 10A |
| Hydraulic Pressure (maximum) | 3300 psi |
| Baud Rate | 250 kbps |
| Clock Frequency (maximum) | 96 MHz |
| Solenoid Valve PWM Frequency | 300 Hz |
| Ultrasonic Sensor Transmit Frequency | 50 kHz |
| Operating Temperature Range | 0°C to 80°C |
The kit is rated for a supply voltage of 12 VDC.
The system can handle up to 3300 psi of hydraulic pressure.
The CANbus communication uses a baud rate of 250 kbps.
The kit operates between 0 °C and 80 °C.
