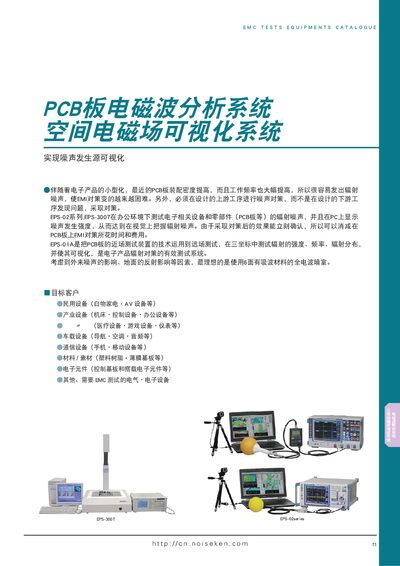

Catalogue of NoiseKen EPS-02 series equipment for electromagnetic field visualization and measurement.
The NoiseKen EPS-02 series provides hardware and software for visualizing and measuring electromagnetic fields. It uses digital camera images to locate probes, performs real‑time frequency analysis, and can overlay field intensity maps on photographed objects.
Multiple variants (EPS-02Ev2, EPS-02EMFv2, EPS-02Hv2) offer different probe options, frequency ranges, and portability, allowing customized solutions for PCB, automotive, and other electronic EMC testing needs.
| Supported axes | X, Y, Z and composite |
|---|---|
| Probe cable length | 2 m standard, 5 m optional |
| Dimensions / Weight | W 60 mm × D 230 mm × H 94 mm, approx. 3 kg |
Yes, the EPS-02EMF variant can store measured magnetic field frequency data for later analysis.
The system can use magnetic field probes such as FT3470‑91/92 from Nitto‑Denki and other compatible probes supplied by the manufacturer.
