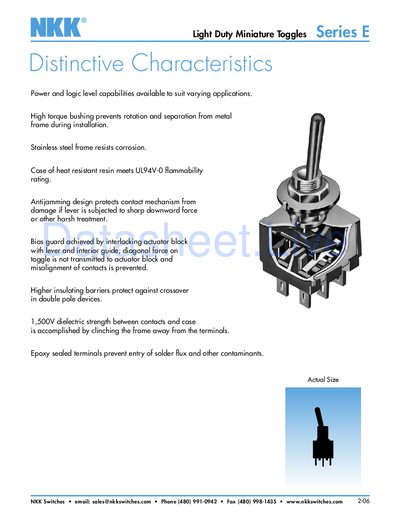

The NKK Switches Series E 2-06 Light Duty Miniature Toggles datasheet provides electrical, mechanical, environmental specifications and ordering details.
The Series E 2-06 Light Duty Miniature Toggles from NKK Switches are high‑torque, corrosion‑resistant switches designed for a wide range of applications. The document lists their electrical ratings, material construction, environmental limits and certification information.
Key features include a 3 A @ 125 V AC rating for silver contacts, 0.4 VA logic‑level capability, 1,500 V dielectric strength, stainless‑steel frame, UL94V‑0 resin case and extensive mechanical life data. Installation torque, vibration and shock specifications are also provided for reliable mounting.
| Power Level (Silver contacts) | 3A @ 125V AC |
|---|---|
| Logic Level (Gold contacts) | 0.4VA max @ 28V AC/DC |
| Contact Resistance (Silver) | 10 mΩ max |
| Insulation Resistance | 1,000 MΩ min @ 500V DC |
| Dielectric Strength (contacts‑case) | 1,500 V AC min (1 min) |
| Mechanical Life | 100,000 operations min |
| Electrical Life (Silver contacts) | 20,000 operations min |
| Toggle Material | Brass with chrome plating |
| Frame Material | Stainless steel |
| Case Material | Melamine phenolic resin (UL94V-0) |
| Operating Temperature Range | –10 °C to +70 °C |
| Vibration Resistance | 10‑55 Hz, 1.5 mm peak‑to‑peak |
| Shock Resistance | 50 G (490 m/s²) |
| Mounting Torque (double nut) | 1.47 Nm (13 lb·in) |
The silver contacts are rated for 3 A at 125 V AC.
It provides a minimum of 1,500 V AC for one minute between contacts and the case.
The switch can operate from –10 °C up to +70 °C.
It meets UL94V‑0 flammability, is UL recognized, and is CSA certified for 3 A @ 125 V AC operation.
