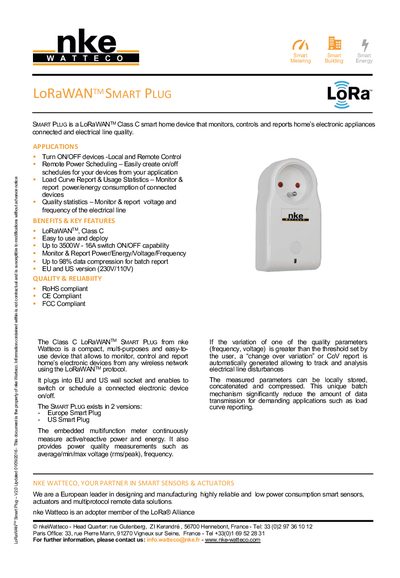

The nkeWatteco LoRaWAN Class C Smart Plug provides remote on/off control, power scheduling, and detailed energy monitoring for home appliances.
The SMARTPLUG is a LoRaWAN® Class C enabled smart home device that can turn appliances on or off locally and remotely, create power‑on/off schedules, and report load curves, energy usage, voltage and frequency. It is available in EU (230 V) and US (110 V) versions and complies with RoHS, CE and FCC standards.
Technical specifications include a 863‑870 MHz (EU) or 902‑928 MHz (US) RF transceiver, +14 dBm transmit power, -140 dBm receiver sensitivity, operating voltage 100‑250 VAC, max load 16 A/250 VAC (≈3500 W), and a compact 62 × 114 × 40 mm form factor. The device measures active/reactive power and energy with 1 W/Var resolution and supports AES‑128 encryption.
| RF Frequency (MHz) | EU: 863‑870, US: 902‑928 |
|---|---|
| Transmit Power (dBm) | +14 |
| Receiver Sensitivity (dBm) | -140 |
| Operating Voltage (VAC) | 100‑250 |
| Power Frequency (Hz) | 50‑60 |
| Max Load Capacity | 16 A/250 VAC (≈3500 W) |
| Active/Reactive Power Resolution | 1 W/Var |
| Energy Measurement Bandwidth | 1.23 kHz |
| Dimensions (mm) | 62 × 114 × 40 |
| Operating Temperature (°C) | -20 / +50 |
It uses the LoRaWAN® Class C protocol for communication.
The device can switch up to 16 A at 250 VAC, equivalent to about 3500 W.
It is RoHS, CE, and FCC compliant.
