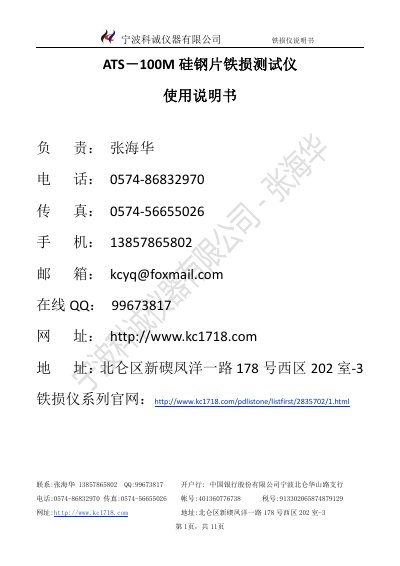

This manual provides operating instructions for the ATS-100M Silicon Steel Core Loss Tester, a device designed to measure iron loss in silicon steel sheets…
The ATS-100M Silicon Steel Core Loss Tester is a specialized instrument designed to measure the iron loss of silicon steel sheets. It utilizes microcontroller control technology combined with A/D and D/A conversion, featuring a built-in sine wave excitation power source. The device displays test results directly on a digital meter, allowing for intuitive assessment of electrical steel sheet losses. It is primarily used for on-site detection of single-sheet silicon steel core loss values and is suitable for industries such as silicon steel production, trade, motors, and transformers. This manual is written in Chinese.
| Working Voltage | 220V±20% AC |
|---|---|
| Display | 4-digit LED |
| Test Frequency | 50Hz, 60Hz |
| Test Range | 0.10～19.99 W/kg |
| Magnetic Flux Density Range | Bs1: 0.5～1.0T; Bs2: 1.0～1.5T; Bs3: 1.5～1.9T |
| Sample Size Requirement | ≥50mm×50mm |
| Test Repeatability | ±1% |
| Test Accuracy | 5% |
| Display Refresh Rate | 6 times/second |
| Operating Temperature | -10°C～40°C |
| Operating Humidity | 35～75% |
| Dimensions | 235×90×330mm (W×H×D) |
| Weight | 2.5kg |
The instrument allows free selection between 50Hz and 60Hz.
The device can measure core loss values from 0.10 to 19.99 W/kg.
The instrument should be warmed up for 15 minutes after power-on to ensure accurate testing.
The test repeatability is ±1%, which meets the requirements for judging silicon steel performance.
