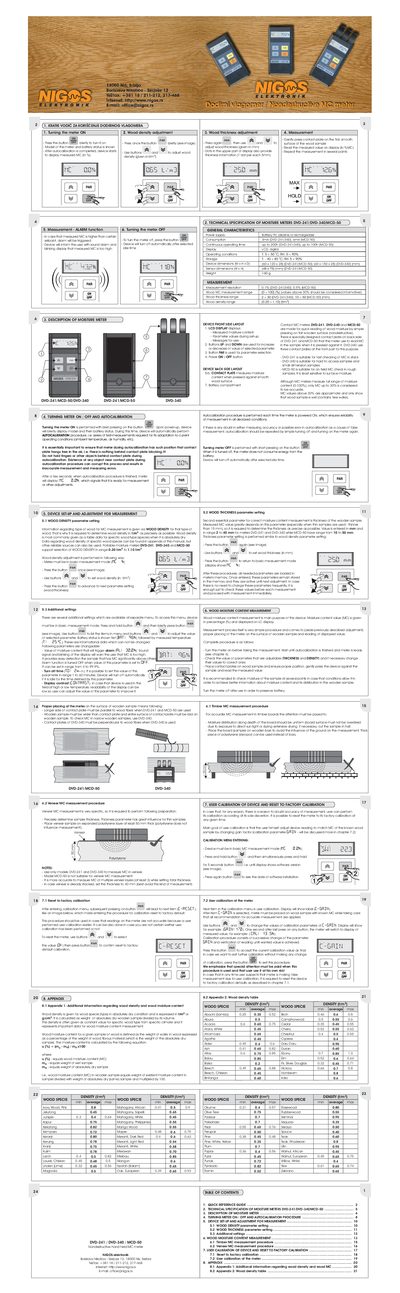

User manual for the NIGOS‑elektronik DVD‑241, DVD‑340 and MCD‑50 wood moisture meters with operating instructions and technical specifications.
The NIGOS‑elektronik DVD‑241, DVD‑340 and MCD‑50 are handheld, nondestructive wood moisture meters. The manual explains how to power the device on and off, perform autocalibration, and adjust parameters such as wood density and thickness before taking measurements.
It also covers measurement procedures for timber and veneer, user calibration, resetting to factory defaults, and provides technical data like battery type, power consumption, dimensions, and measurement ranges. Appendices contain wood density tables and additional information.
| Battery type | 9 V alkaline or rechargeable |
|---|---|
| Power consumption | 3 mA (DVD‑241/340), 6 mA (MCD‑50) |
| Continuous operating time | up to 200 h (DVD‑241/340), up to 100 h (MCD‑50) |
| Dimensions (W × H × D) | 60 × 120 × 28 mm (DVD‑241/MCD‑50); 60 × 150 × 28 mm (DVD‑340) |
| Moisture‑content measurement range | 0 %–100 % (0 %–30 % accurate) |
| Wood density range | 0.20 t/m³ – 1.10 t/m³ |
| Wood thickness range | 2 mm – 40 mm (DVD‑241/340); 10 mm – 50 mm (MCD‑50) |
