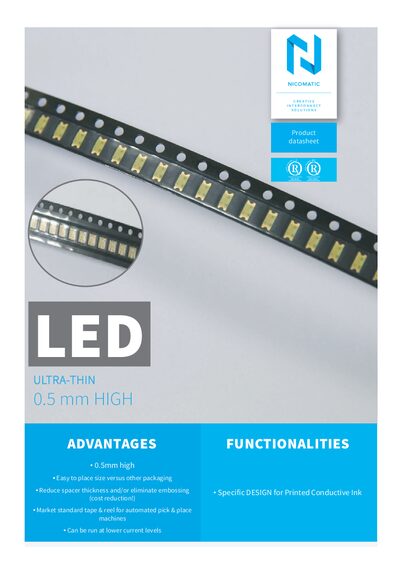

Technical specifications and electro‑optical characteristics of Nicomatic ultra‑thin LED series.
The data sheet presents the advantages of Nicomatic's ultra‑thin 0.5 mm LEDs, including easy placement, reduced spacer thickness, and compatibility with automated pick‑and‑place machines. It lists the electro‑optical parameters for each part number, such as luminous intensity, forward voltage, and dominant wavelength.
Packaging dimensions, recommended solder patterns, and handling precautions are detailed, covering moisture‑proof storage, baking treatment, and strict ESD protection requirements for AlGaInP, GaN, and InGaN chips. Absolute maximum ratings and operating temperature ranges are also provided.
| Operating Temperature Range | -40 °C to +85 °C |
|---|
The storage temperature range is –40 °C to +90 °C.
ESD protection is required; the devices are static‑sensitive and must be protected during design and assembly.
Soldering temperature is 260 °C for 10 seconds or 350 °C for 3 seconds.
