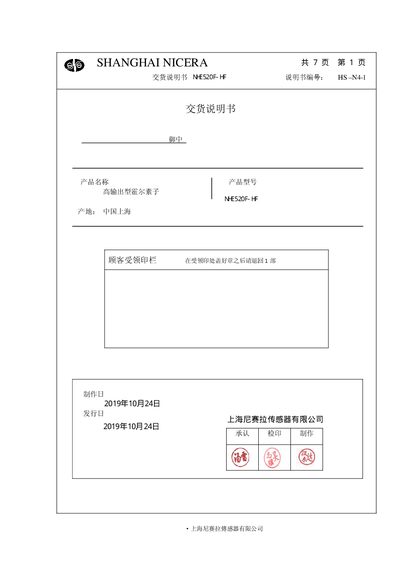

The Nicera NHE520F-HF Hall sensor delivery manual provides specifications, installation conditions, packaging and handling instructions.
The delivery manual for the NHE520F-HF high‑output Hall sensor lists its absolute maximum ratings and electrical characteristics, such as Hall output voltage, unbalance voltage, input and output resistance, and temperature coefficients. It also defines the Hall output voltage classification and the recommended soldering and mounting procedures.
Packaging details include tape reel construction, mechanical strength requirements, storage conditions, and the quantity of devices per reel, tape, and box. The document specifies handling guidelines to ensure product integrity during transport and storage. This manual is written in Chinese.
| Hall output voltage (VH) | 168–428 mV |
|---|---|
| Unbalance voltage (Vo) | ±7 mV |
| Input resistance (Rin) | 240–550 Ω |
| Output resistance (Rout) | 240–550 Ω |
| Maximum control current (Ic max) | 20 mA |
| Storage temperature range (Tstg) | -40 °C to +125 °C |
Each tape reel holds 3 000 sensors; five reels (15 000 sensors) fit in a small box; six small boxes (90 000 sensors) fit in a large box.
Store at temperatures up to 40 °C, humidity up to 80 % RH, and avoid direct sunlight.
The unbalance voltage is limited to ±7 mV.
