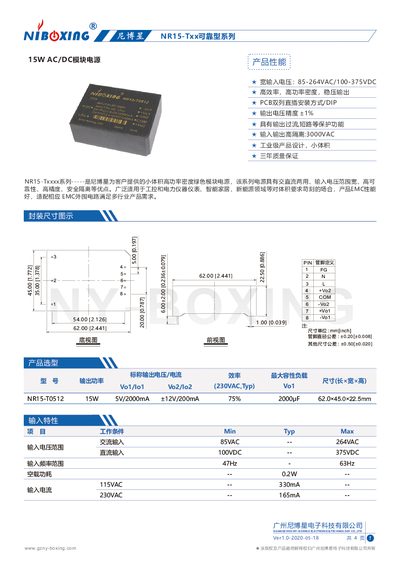

The NiboStar NR15-Txx series AC/DC module power supply manual provides input/output specifications, dimensions, application circuits, and safety guidelines.
The NR15‑Txx series is a compact, high‑power‑density AC/DC module power supply designed for industrial control, instrumentation, smart‑home and renewable‑energy applications. It supports a wide input voltage range (85‑264 VAC or 100‑375 VDC) and delivers up to 15 W with high efficiency.
Key features include ±1 % output voltage accuracy, 3000 VAC isolation, over‑current and short‑circuit protection, and optional EMC‑optimized external circuitry. The datasheet lists mechanical dimensions, performance curves, typical application schematics, and safety notices for proper integration. This manual is written in Chinese.
| Input voltage range (AC) | 85 VAC – 264 VAC |
|---|---|
| Input voltage range (DC) | 100 VDC – 375 VDC |
| Output power (rated) | 15 W |
| Output voltage / current (primary) | 5 V / 2000 mA |
| Isolation voltage | 3000 VAC |
| Operating temperature range | -40 °C – +70 °C |
| Package dimensions (L×W×H) | 62.0 mm × 45.0 mm × 22.5 mm |
The module accepts 85 VAC to 264 VAC AC or 100 VDC to 375 VDC DC input voltage.
