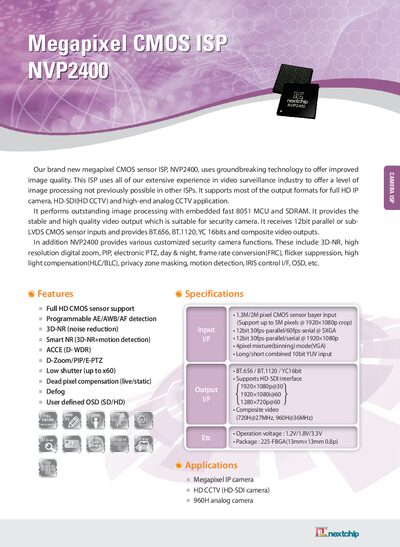

The Nextchip NVP2400 CMOS ISP provides high‑resolution image processing for security cameras with multiple video outputs and advanced features.
The NVP2400 is a megapixel CMOS image signal processor designed for video‑surveillance applications. It combines a fast 8051 MCU and SDRAM to deliver stable, high‑quality video output for full‑HD IP cameras, HD‑SDI and high‑end analog CCTV systems.
Key functions include 3D‑NR, digital zoom, picture‑in‑picture, electronic PTZ, day/night mode, frame‑rate conversion, flicker suppression, high‑light compensation, privacy‑zone masking, motion detection, IRIS control and on‑screen display. The device supports a variety of input and output interfaces and is offered in a 225‑FBGA package.
| Resolution support | Full HD 1080p |
|---|---|
| Sensor input interface | 12‑bit parallel or sub‑LVDS CMOS |
| Video output interfaces | BT.656, BT.1120, YC 16‑bit, composite video |
| Operation voltage | 1.2 V / 1.8 V / 3.3 V |
| Package | 225‑FBGA (13 mm × 13 mm, 0.8 p) |
| Embedded processor | 8051 MCU |
The NVP2400 provides BT.656, BT.1120, YC 16‑bit and composite video outputs.
It accepts 12‑bit parallel or sub‑LVDS CMOS sensor inputs.
The device operates at 1.2 V, 1.8 V, or 3.3 V.
