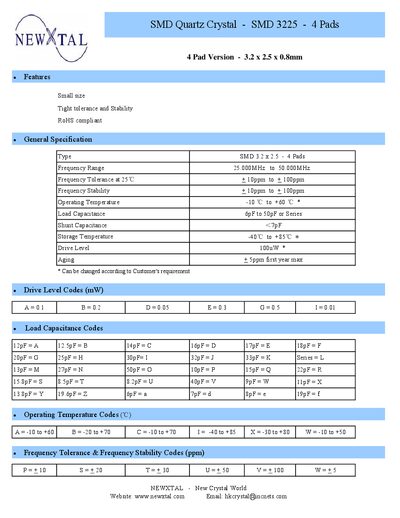

The NEWXTAL SMD 3225 quartz crystal datasheet provides dimensions, frequency range, tolerance, temperature, load capacitance and ordering details.
The SMD 3225 is a 4‑pad surface‑mount quartz crystal measuring 3.2 mm × 2.5 mm × 0.8 mm. It offers a small footprint, tight tolerance, good stability and is RoHS compliant. The crystal is available in a range of frequencies from 25 MHz to 50 MHz with selectable load capacitance and drive level options.
The datasheet lists detailed specifications such as frequency tolerance, stability, operating temperature range, ESR values and marking codes. It also includes ordering information, dimensions, taping specifications and a recommended reflow soldering profile for assembly.
| Frequency Range | 25.000 MHz to 50.000 MHz |
|---|---|
| Frequency Tolerance | +10 ppm to +100 ppm |
| Frequency Stability | +10 ppm to +100 ppm |
| Operating Temperature | -10 °C to +60 °C |
| Load Capacitance | 6 pF to 50 pF |
| Drive Level | 100 µW |
| Dimensions (L × W × H) | 3.2 mm × 2.5 mm × 0.8 mm (±0.15 mm on L & W) |
It operates from 25.000 MHz up to 50.000 MHz.
The crystal measures 3.2 mm × 2.5 mm × 0.8 mm (±0.15 mm on length and width).
Preheat to 120 °C, soak at 180 °C, peak at 220 °C, with a maximum time of 10 seconds.
The specified drive level is 100 µW.
