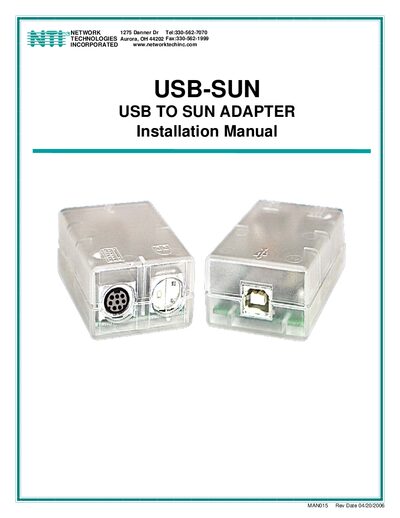

Installation manual for the Network Technologies NTI USB-SUN adapter that connects SUN USB‑enabled CPUs to NTI KVM switches.
The NTI USB-SUN adapter provides a simple way to link a SUN USB‑enabled CPU to an NTI Universal Multi‑Platform or Matrix KVM switch. The manual lists the supplied USB‑AB‑0.5M‑5T cable and describes optional SKTINT‑xx‑MM cables for connecting to the KVM switch.
Installation steps cover connecting the mini‑DIN cable to the KVM switch, attaching the USB‑B connector to the adapter, and linking the USB‑A connector to the CPU. The guide also explains how to attach legacy SUN keyboards and mice, required BIOS settings, technical pin‑out specifications, and warranty information.
| Pin 5 | Keyboard Receive (KYBD RCV) |
|---|---|
| Pin 6 | Keyboard Transmit (KYBD XMT) |
Connect one male 8‑pin mini‑DIN end of an SKTINT‑xx‑MM cable to the KVM switch’s “Devices” input port, then connect the other end to the adapter’s mini‑DIN port, and finally attach the USB‑B and USB‑A connectors to the adapter and CPU respectively.
The SUN CPU’s Sleep Mode must be disabled; set the Power Manager’s “Device Idle Time Before Power Saving Starts” to “Always ON”.
The product is covered by a one‑year warranty for parts and labor.
