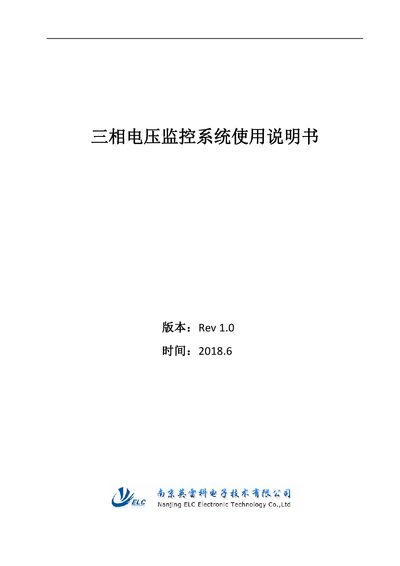

The user manual provides installation, configuration, and operation instructions for the Nanjing Yinglei Ke EVR‑GHLC‑3P three‑phase voltage monitoring system.
This manual describes the three‑phase voltage monitoring system, its main functions such as real‑time monitoring, alarm reporting, and remote configuration. It outlines the hardware components, including the three‑phase voltage sensor, power supply, and RS485 communication interface.
The guide walks through hardware installation, software setup, communication parameter configuration, system operation, user management, and troubleshooting. It also includes wiring diagrams, parameter tables, and FAQs to help users configure alarm thresholds and reset fault codes. This manual is written in Chinese.
| Power supply | 85‑265 V AC |
|---|---|
| Dimensions | 35 mm × 107 mm |
