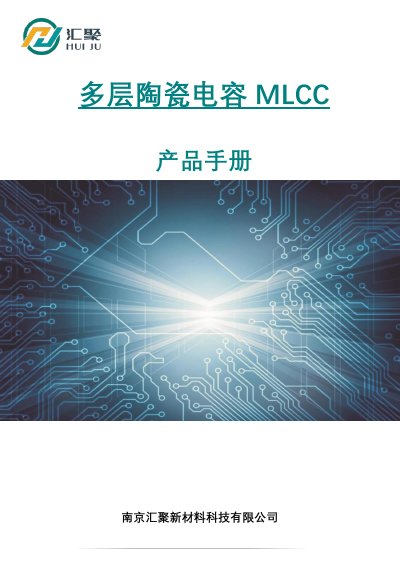

This handbook provides ordering information, dimensions, packaging, and specifications for Nanjing Huiju’s multi‑layer ceramic capacitor series.
The document presents Nanjing Huiju’s full range of multi‑layer ceramic capacitors (MLCC), organized by series such as low‑voltage NL, medium‑voltage NM, high‑voltage NV/NH, high‑capacitance NC, low‑loss ND, and automotive‑grade AN. Each series description includes product highlights, typical applications, and key electrical parameters.
Detailed tables give physical dimensions for standard EIA sizes (0603, 0805, 1206, etc.), packaging options, dielectric materials, rated voltages, capacitance ranges, loss‑tan, Q‑factor, insulation resistance, and operating temperature limits. The handbook also lists relevant safety and quality certifications. This manual is written in Chinese.
| Rated voltage (NL series) | 25V, 50V |
|---|---|
| Capacitance range (NL series) | 0.5pF~470nF |
| Dielectric material (NL series) | C0G X7R |
| Operating temperature range | -55°C to +125°C |
| Insulation resistance | ≥100GΩ |
| 0603 package dimensions | L 1.60±0.15 mm, W 0.80±0.15 mm |
The 0603 package measures 1.60 mm in length and 0.80 mm in width (±0.15 mm).
The AN series is the automotive‑grade line, certified to AEC‑Q200 standards.
The NL series uses a C0G X7R dielectric material.
