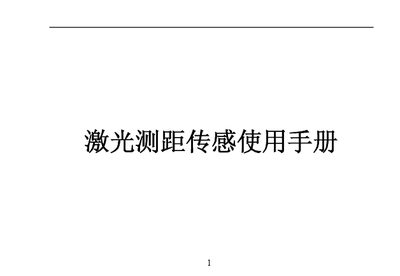

User manual for NanFang Measurement Control LPS series laser range sensors, covering safety, installation, operation, specifications and maintenance.
This manual introduces the LPS series laser range sensors, describing their principle of operation, safety classifications, and typical industrial applications such as distance measurement, material level detection, and vehicle safety. It provides detailed technical parameters, wiring diagrams, and communication interface information (RS‑232).
The guide also includes safety precautions, maintenance procedures, troubleshooting steps, and handling instructions to ensure reliable long‑term performance in harsh industrial environments. This manual is written in Chinese.
| Measurement distance range | 2‑30 m (LPS30), 2‑50 m (LPS50), 2‑100 m (LPS100), 2‑150 m (LPS150) |
|---|---|
| Measurement accuracy | ±0.3 m (LPS30), ±0.4 m (LPS50), ±0.5 m (LPS100/150) |
| Resolution | 1 cm |
| Measurement frequency | 1‑100 Hz (selectable) |
| Output interface | Standard RS‑232 (RS‑232‑232) – optional custom interfaces |
| Supply voltage | DC 9‑24 V |
| Laser wavelength (measurement) | 905 nm |
| Laser wavelength (indicator) | 650 nm |
| Operating temperature | -10 °C ~ +50 °C |
| Storage temperature | -30 °C ~ +70 °C |
| Dimensions (L×W×H) | 128 mm × 74 mm × 51 mm |
| IP protection rating | IP65 / IP67 |
The sensor uses a Class 2 laser (output power < 1 mW), which is generally safe for the eye but direct staring should be avoided.
Wipe the sensor with a soft, slightly damp cotton cloth; do not use corrosive or volatile cleaning agents.
No, the sensor must not be immersed in water even though some models have an IP67 rating.
