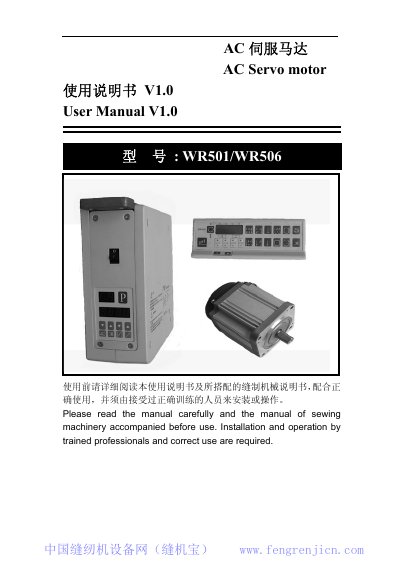

This manual provides installation, operation, and maintenance instructions for the N-Vý WR501/WR506 AC servo motor used in sewing machinery.
This user manual covers the N-Vý WR501/WR506 AC servo motor, designed for use with specific sewing machinery. It includes safety precautions, installation and adjustment procedures, wiring and grounding guidelines, and descriptions of the control box and operation box components. The document also details system parameter settings, sewing function adjustments, and troubleshooting for various fault codes. This manual is written in Chinese.
| Operating Voltage | 200V—240V |
|---|---|
| Operating Temperature | 5℃ to 45℃ |
| Relative Humidity | 30% to 95% |
| Warranty Period | 12 months |
A proper grounding engineering must be performed for the sewing machine, motor, control box, and positioning device to prevent noise interference or leakage accidents.
The L.oiL code indicates that the machine has run for a duration exceeding the oiling prompt time, and the user should add oil.
Sewing speed can be adjusted using specific parameters such as No.1, 4, 41~42, 53, 56, 59, and 80.
