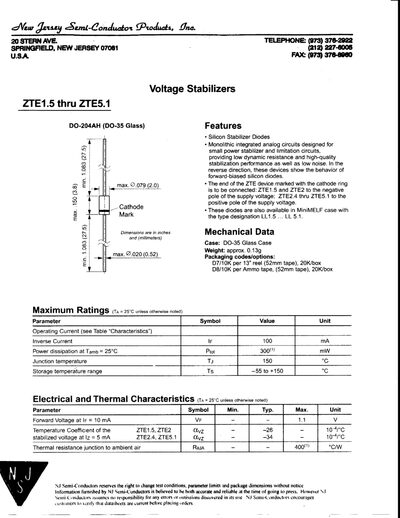

Datasheet for N.I Semiconductor ZTE1.5‑ZTE5.1 silicon voltage stabilizer diodes, covering electrical, thermal and mechanical specifications.
The ZTE1.5‑ZTE5.1 series are silicon stabilizer diodes designed for low‑dynamic‑resistance voltage stabilization and limitation circuits. They are supplied in DO‑35 glass packages (also available in MiniMELF LL versions) and feature monolithic integrated analog circuits for high‑quality performance and low noise.
The datasheet provides detailed electrical and thermal characteristics, mechanical data such as case type and weight, and packaging options (e.g., D7/10K reels, D8/10K ammo tape). Connection guidelines are included: ZTE1.5 and ZTE2 are tied to the negative supply pole, while ZTE2.4 through ZTE5.1 connect to the positive pole.
| Case type | DO‑35 Glass |
|---|---|
| Case weight | approx. 0.13 g |
| Packaging code | D7/10K per 13" reel, 20K/box |
They are supplied in a DO‑35 glass case, with an optional MiniMELF (LL) version.
