User manual for the Musen MS-601G instrument that tests CT and PT characteristics with high accuracy and automation.
The MS-601G is a high‑performance testing instrument for current transformers (CT) and voltage transformers (PT). It provides comprehensive tests such as excitation (V‑I) characteristics, ratio, polarity, secondary winding resistance, load, ratio error and phase error, meeting standards like GB1208 and IEC60044‑1. The device uses a DSP and ARM processor, stores up to 2000 test sets, and generates Word reports via PC software.

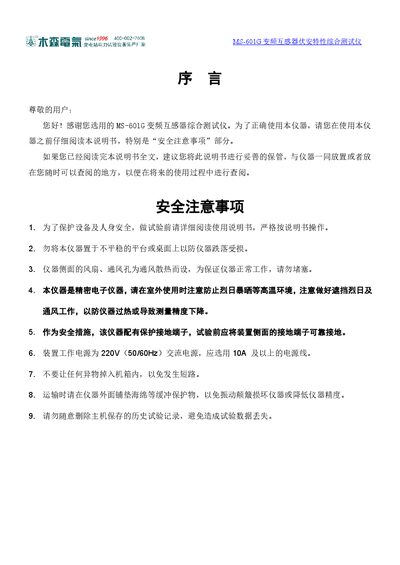

The manual covers safety precautions, installation, panel description, parameter settings, test procedures for CT and PT, result interpretation, and wiring diagrams for various transformer configurations. It also includes an appendix with low‑frequency test theory and error‑curve calculations. This manual is written in Chinese.
| Output Voltage Range | 0~180 Vrms |
|---|---|
| Output Current Range | 12 Arms (36 A peak) |
| Voltage Measurement Accuracy | ±0.2 % |
| CT Ratio Measurement Range | 1~30000 |
| PT Ratio Measurement Range | 1~10000 |
| Phase Measurement Accuracy | ±5 min |
| Secondary Winding Resistance Range | 0~300 Ω |
| AC Load Measurement Range | 0~300 VA |
| AC Load Accuracy | 2 % ± 0.2 VA |
| Input Power | AC 220 V ±10 % 50 Hz |
| Operating Temperature | -10 °C ~ 50 °C |
| Dimensions | 340 mm × 300 mm × 150 mm |
The instrument requires an AC 220 V ±10 % power source at 50 Hz (or 60 Hz) with a cable rated 10 A or higher.
The MS-601G can store up to 2000 sets of test data, which are retained even after power loss.
