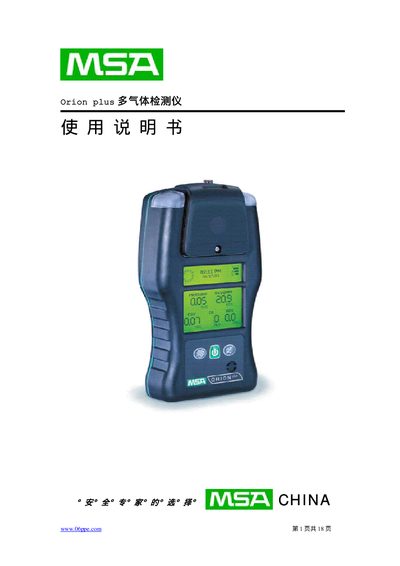

The MSA Orion Plus manual provides safety instructions, operation steps, calibration procedures, battery information and troubleshooting for the multi‑gas…
This manual covers safe handling, power‑on/off, reset, and basic operation of the Orion Plus multi‑gas detector. It explains how to perform sensor calibration, set alarms, and navigate the instrument menus.
Additional sections describe battery specifications, environmental limits, gas detection limits, and a detailed troubleshooting guide with problem‑action tables. This manual is written in Chinese.
| Battery capacity (large) | 10 Ah |
|---|---|
| Upper explosive limit (LEL) detection | 100 % LEL |
| Carbon monoxide detection limit | 300 ppm CO |
| Methane detection limit | 5.00 % CH₄ |
Select the Calibration menu, then follow the on‑screen prompts for single‑sensor or multiple‑sensor calibration.
The device uses a rechargeable NiMH battery, available in 10 Ah and 6 Ah capacities.
The detector measures up to 100 % LEL and detects carbon monoxide down to 300 ppm.
