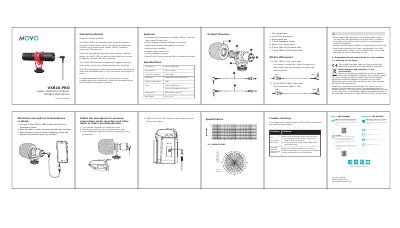

Instruction manual for the MOVO VXR10 PRO super-cardioid condenser shotgun microphone, covering setup, usage, troubleshooting, and specifications.
This document is an instruction manual for the MOVO VXR10 PRO, a super-cardioid condenser shotgun microphone designed for smartphones, tablets, DSLRs, camcorders, and PCs. The device features plug-and-play operation with no battery required, improved sensitivity, and a durable metal construction.
| Transducer Type | Electret Condenser |
|---|---|
| Polar Pattern | Super-cardioid |
| Sensitivity | -36dB±3dB (0dB=1V/Pa,1kHz) |
| Plug Type | 3.5mm TRRS line-out / 3.5mm TRS headphone output |
Turn counter-clockwise to loosen the screw, slide the microphone onto the camera's hot shoe, and turn clockwise to tighten the screw.
The microphone works with smartphones, tablets, DSLRs, consumer camcorders, PCs, and other audio or video recording devices.
