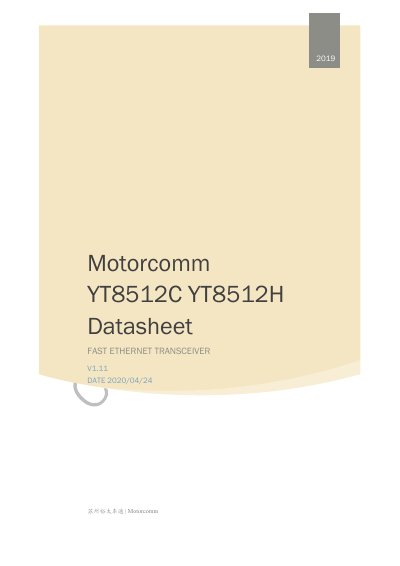

The Motorcomm YT8512C and YT8512H datasheet provides specifications, pin assignments, register details, and package information for these low‑power…
The YT8512C and YT8512H are low‑power single‑port 10/100 Mbps Ethernet PHYs that support both MII and RMII interfaces. They include features such as built‑in self‑test, loopback modes, Energy Efficient Ethernet (EEE), and Wake‑on‑LAN for power‑saving applications.
The datasheet details pin assignments, register maps, timing and electrical characteristics, as well as mechanical and packaging information. It also lists target applications like embedded systems, video surveillance, industrial controls, and factory automation.
| Package (YT8512C) | QFN32 5x5 mm |
|---|---|
| Operating Temperature (YT8512C) | 0 °C to 70 °C |
| Package (YT8512H) | QFN32 5x5 mm |
| Operating Temperature (YT8512H) | -40 °C to 85 °C |
| Data Rate | 10/100 Mbps |
Both devices can connect to a MAC through standard MII and RMII interfaces.
The YT8512C operates from 0 °C to 70 °C, while the YT8512H operates from –40 °C to 85 °C.
Yes, the YT8512C/YT8512H include Wake‑on‑LAN (WoL) functionality.
Both models are supplied in a QFN32 5 × 5 mm package.
