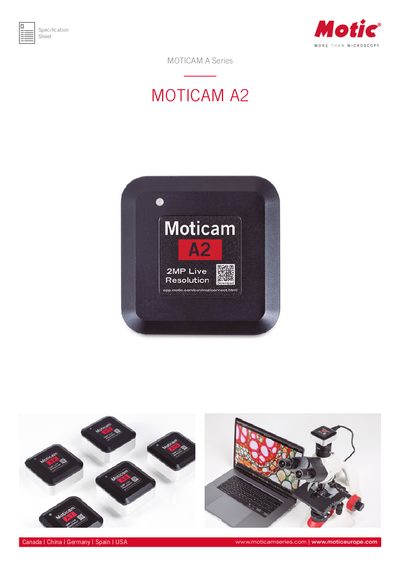

The MOTICAM A2 camera specification sheet lists its sCMOS sensor, 2 MP resolution, USB 2.0 interface, and supported operating systems.
The MOTICAM A2 is a compact scientific camera equipped with a 1/3.1" sCMOS sensor and a 5.95 mm diagonal imaging area. It delivers up to 2 MP still images and full HD video at 30 fps via a USB 2.0 connection, with both progressive and rolling shutter modes available.
The camera is compatible with Windows 7/8/10, macOS 10.9, and Linux Ubuntu 16.04 or higher, requiring a minimum 2 GHz dual‑core PC with 2 GB RAM. It uses a C‑mount lens, 5 V USB power, and ships with adapters, a calibration slide, and a macro tube for immediate use.
| Sensor type | sCMOS |
|---|---|
| Sensor size | 1/3.1" |
| Imaging area | 5.95 mm (Diagonal) |
| Capture resolution | 2 MP |
| Live display mode | USB 1920x1080, 1280x720 pixels |
| Pixel size | 2.7 µm × 2.7 µm |
| Data transfer | USB 2.0 |
| Maximum frame rate | 30 fps at 1920×1080 |
| Operating temperature | -10 °C to +60 °C (non‑condensing) |
| Supported OS | Windows 7/8/10, macOS 10.9, Linux Ubuntu 16.04+ |
| Power supply | 5 V via USB |
It uses an sCMOS sensor.
Windows 7/8/10, macOS 10.9, and Linux Ubuntu 16.04 or higher are supported.
The camera can capture 1920×1080 video at up to 30 fps.
It is powered by 5 V supplied through the USB connection.
