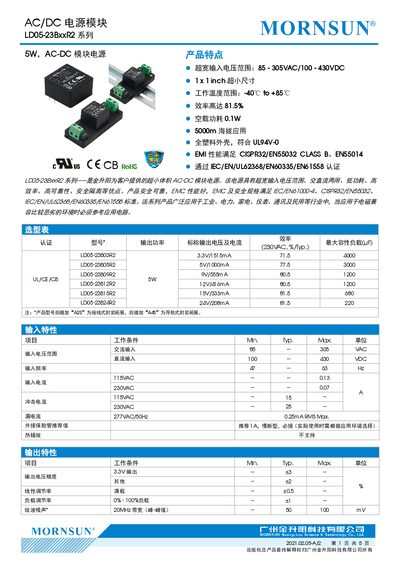

The Mornsun LD05-23BxxR2 series AC/DC power module datasheet provides features, specifications, and design guidelines for industrial applications.
The LD05-23BxxR2 series offers an ultra‑compact AC‑DC power solution with a wide input voltage range, high efficiency up to 81.5 %, and low no‑load power consumption of 0.1 W. It operates from –40 °C to +85 °C and meets multiple safety and EMC standards, making it suitable for industrial, power, home appliance, instrumentation, and communications equipment.
The datasheet includes a selection table, detailed input and output characteristics, general and EMC specifications, typical application circuits, and packaging information. Designers can reference the provided EMC solutions and mechanical dimensions to integrate the module into their products safely and efficiently. This manual is written in Chinese.
| Input voltage range | 85‑305 VAC / 100‑430 VDC |
|---|---|
| Efficiency | up to 81.5 % |
| No‑load power consumption | 0.1 W |
| Operating temperature | -40 °C to +85 °C |
| Package size (horizontal) | 25.40 × 25.40 × 17.60 mm |
| Typical weight (horizontal) | 18.0 g |
The module achieves an efficiency of up to 81.5 %.
It accepts 85‑305 VAC or 100‑430 VDC input.
Hot swapping is not supported.
It complies with IEC/EN/UL62368, EN60335, and EN61558 standards.
