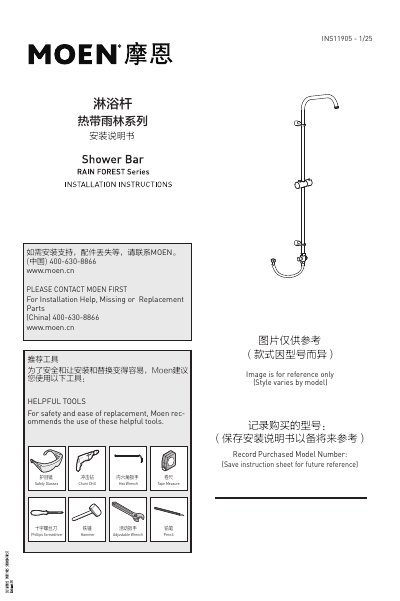

Moen Tropical Rainforest Series Shower Bar Installation Guide

About this manual

This guide covers the installation of the Moen Tropical Rainforest Series shower bar. It details the recommended tools required, such as a hammer drill and hex wrench, and outlines safety precautions regarding hidden pipes or cables during wall drilling.

The document includes a parts list identifying components like the upper cradle, lower cradle, diverter valve, and flexible hose. Step-by-step instructions are provided for assembling the tube components, mounting the fixing rings to the wall, installing the shower bar, and connecting the faucet outlet. This manual is written in Chinese.

What's inside

• Recommended Tools
• Precautions Before Installation
• Parts List
• Assemble the Tubes
• Install the Fixing Ring
• Install the Shower Bar
• Connect Faucet Outlet
• Usage of Diverter
• Maintenance

Specifications

Frequently asked questions

What is the warranty period for this shower bar?

The free warranty period for the shower bar is one year from the date of purchase.

How should I clean the product?

Clean regularly with clean water or mild liquid detergent, rinse with clean water, and wipe dry with a soft cotton cloth. Do not use acidic or abrasive detergents.
