MobileRobots Pioneer 3 Operations Manual

The MobileRobots Pioneer 3 Operations Manual provides installation, safety, control, and technical specifications for the Pioneer 3 robot.

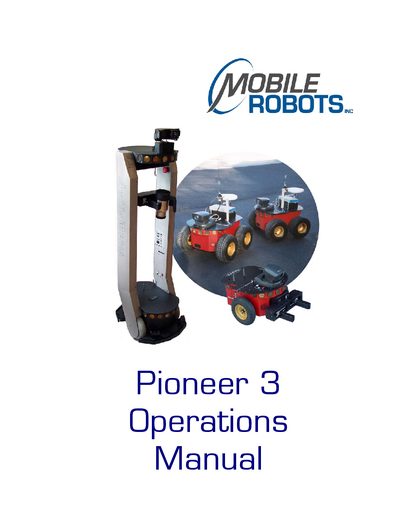

MobileRobots Pioneer 3 Operations Manual - cover page
Brand
MobileRobots
Category
Industrial Robot
Document type
User Manual
Language
English
Pages
75
File format
PDF
File size
1.5 MB
Published
03 October, 2026
Updated
03 October, 2026
MD5 checksum
5E49E08D88E444339E97B3CCE18C4BC9
PDF
MobileRobots Pioneer 3 Operations Manual PDF

About this manual

This manual introduces the MobileRobots Pioneer 3 platform, a compact research robot equipped with an aluminum body, differential drive, and a SH2 microcontroller. It explains the robot's hardware components, software architecture, and the supported client applications such as ARIA and MobileEyes.

The document covers safety guidelines, hardware assembly, quick‑start procedures, ARCOS communication protocols, calibration, maintenance, and detailed specifications of sensors, I/O ports, and power. Appendices provide connector pin‑outs, port details, and warranty information.

What's inside

  • Introduction
  • Robot Packages
  • Specifications & Controls
  • Accessories
  • Quick Start
  • ARCOS Communication
  • Calibration & Maintenance
  • Appendices
  • Warranty

Specifications

Weight9 kg (20 pounds with one battery)
Encoder resolution76,600 counts/rev (Pioneer 3‑DX)

Frequently asked questions

How many digital I/O ports are available on the Pioneer 3 controller?

The controller provides eight digital input ports, eight digital output ports, and one analog‑to‑digital input port.

Where can I download software updates for the Pioneer 3?

Software updates and additional resources are available from the MobileRobots support website at http://robots.MobileRobots.com.

What is the weight of the Pioneer 3‑DX robot?

The Pioneer 3‑DX robot weighs approximately 9 kg (20 lb) with a single battery.
