The Mo He V2.0 Industrial Magic Box User Manual provides installation steps, wiring instructions, safety guidelines, and troubleshooting for the device.

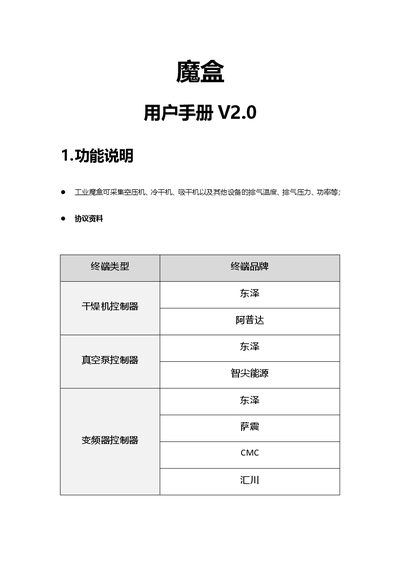

This manual describes the functions of the Industrial Magic Box, including its ability to collect exhaust temperature, pressure and power data from compressors, dryers and other equipment. It also lists compatible terminal brands and controllers.
The guide covers installation requirements, step‑by‑step mounting, wiring of the RS485 interface, power connection (24 V), antenna setup, safety precautions, and common fault troubleshooting with indicator‑light explanations. This manual is written in Chinese.
| Measured parameters | exhaust temperature, exhaust pressure, power |
|---|---|
| Power supply voltage | 24 V |
Mount the box in a suitable space inside the equipment control cabinet, either on a rail or by drilling a hole and securing it with M3 screws.
