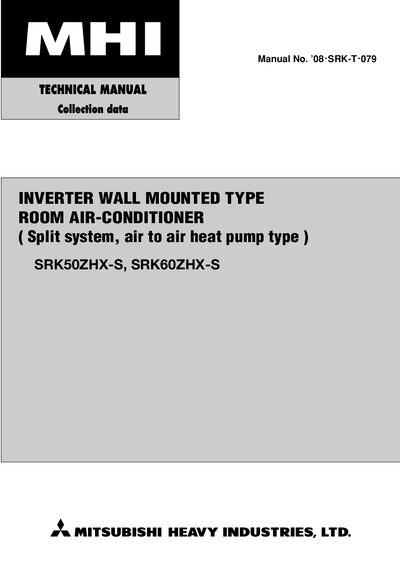

The user manual provides operation, installation, maintenance and technical specifications for Mitsubishi Heavy Industries SRK50ZHX‑S and SRK60ZHX‑S…
This manual covers general information, selection data, electrical data, operation control, application data, maintenance procedures and refrigerant piping installation for the SRK series inverter wall‑mounted room air‑conditioners. It explains the inverter and fuzzy control functions, remote flap and louver control, and safety features.
Key specifications such as cooling and heating capacities, power source, dimensions, refrigerant type and COP are listed, along with detailed servicing instructions for refrigerant recovery and component troubleshooting.
| Cooling capacity (SRK50ZHX‑S) | 5000 W |
|---|---|
| Heating capacity (SRK50ZHX‑S) | 6000 W |
| Power source | 1 Phase, 220‑240 V, 50 Hz |
| Exterior dimensions | 309 × 890 × 220 mm |
| Refrigerant | R410A (1.4 kg pre‑charged) |
| COP (Cooling) | 3.85 |
The SRK50ZHX‑S provides a cooling capacity of 5000 W.
They use R410A refrigerant, pre‑charged with 1.4 kg in the unit.
The unit operates on a single‑phase 220‑240 V, 50 Hz supply.
