Mirle Automation Servo Drive Series Product Leaflet

This Mirle Automation product leaflet provides specifications, wiring diagrams, and features for the SD, SDP, SDS, SDD, HSD, SDPLC servo drive and MA servo…

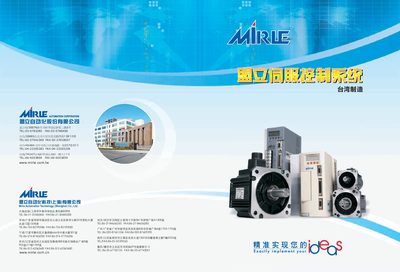

Mirle Automation Servo Drive Series Product Leaflet - cover page
Brand
Mirle Automation
Category
Industrial Robot
Document type
Product Leaflet
Language
Chinese
Pages
10
File format
PDF
File size
1.6 MB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
3EBF7DFAE22DABBEEF078B9688BF5FC2
PDF
Mirle Automation Servo Drive Series Product Leaflet PDF

About this manual

Mirle Automation Technology (Shanghai) Co., Ltd. offers a range of servo drives and motors for industrial automation. The document presents company information, product line overviews, and contact details for regional offices.

The leaflet covers the SD, SDP, SDS, SDD, HSD, high‑power, and SDPLC programmable controller series as well as the MA servo motor series. Each series includes specifications such as input voltage, motor current, control modes, communication options, wiring and dimension drawings, and key functional features. This manual is written in Chinese.

What's inside

  • Company Overview
  • SD Servo Drive Series
  • SDP Servo Drive Series
  • SDS Servo Drive Series
  • SDD Servo Drive Series
  • HSD Servo Drive Series
  • High Power Servo Drive Series
  • SDPLC Programmable Controller Series
  • MA Servo Motor Series

Specifications

Motor rated current2.8 A
Control modesPosition / Speed / Torque
Communication interfacesModbus, RS‑232, RS‑485 (RS‑485 optional)
Maximum pulse input rate500 kpps

Frequently asked questions

Which communication protocols are available on the drives?

The drives support standard Modbus, RS‑232, and RS‑485 (the latter as an optional feature).

What control modes can the Mirle servo drives operate in?

They can operate in position, speed, and torque control modes.

What is the maximum pulse input frequency the drives can handle?

Up to 500 kpps.
