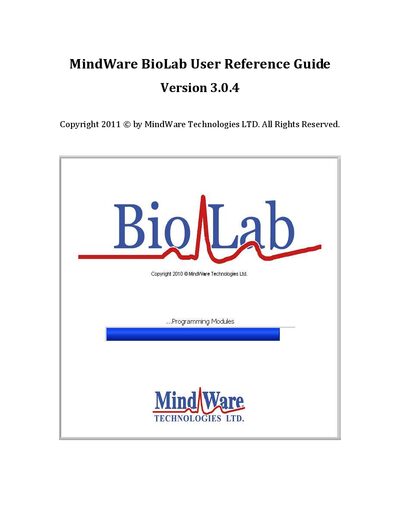

The MindWare BioLab 3.0.4 User Guide explains how to start the software, configure acquisition, use trending, and perform real‑time analysis.
This guide walks users through the initial startup of the BioLab software, hardware detection, and wireless device connection. It describes the configuration screens for both acquisition and file modes, and explains how to set menu, main, and sub‑menu options.
Later sections cover data handling features such as trending, real‑time analysis, file playback, video playback, and static analysis. Appendices provide details on PDA acquisition, wireless setup, and the ASCII‑MW conversion wizard.
| A/D Resolution | Resolution of the A/D converters in the hardware used to acquire the data |
|---|---|
| VFs (Volts Full Scale) | Volts full scale of the hardware used to acquire the data |
| Sampling Frequency (Hz) | Sampling frequency at which the data in the file was collected |
| Data Type | Specifies whether the data in the file is in volts or A/D counts |
| Channel Delimiter | Character used to separate data channels in the file |
| Maximum Wireless Devices (Ambulatory Wi‑Fi) | Up to 8 devices can be connected simultaneously |
| Maximum Wireless Devices (BioNex & Ambulatory Wi‑Fi) | Up to 4 devices can be connected simultaneously |
Up to eight wireless devices can be connected simultaneously in Ambulatory Wi‑Fi mode.
Select File → Open File from the menu bar to open a MindWare file for playback.
It specifies whether the imported data is scaled or unscaled.
It shows the name of the PDA as set in the PDA ACQ 3.0 application on the ambulatory unit.
