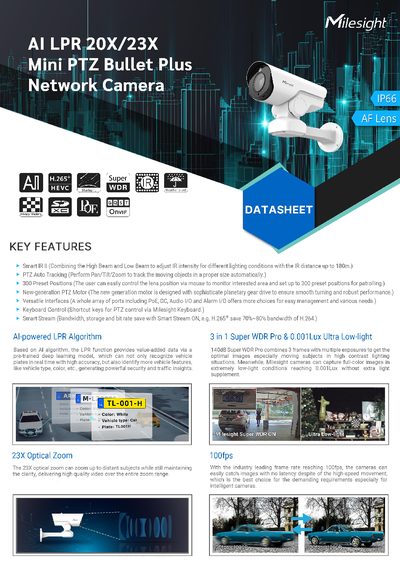

The Milesight datasheet details specifications for the MS-C2867-X20TLPC (2MP) and MS-C5367-X23LPC (5MP) network cameras, covering imaging, PTZ, and…
The MS-C2867-X20TLPC and MS-C5367-X23LPC are Mini PTZ Bullet network cameras featuring AI‑powered license plate recognition, 20X/23X optical zoom, and Smart IR illumination up to 180 m. They support up to 300 PTZ preset positions, auto‑tracking, and a range of advanced video analytics for traffic and security applications.
Technical specifications include progressive‑scan CMOS sensors, low‑light performance down to 0.001 Lux, 140 dB Super WDR, multiple video streams (up to 2592×1944), H.265/H.264/MJPEG compression, PoE power, IP66 weather resistance, and optional microSD storage up to 256 GB. The cameras operate from –40 °C to 60 °C and weigh 2.9 kg with dimensions 110 mm × 337 mm × 220 mm.
| Image Sensor | 1/2" Progressive Scan CMOS |
|---|---|
| Minimum Illumination (Color) | 0.005 Lux @ F1.2 |
| IR Distance | Up to 180 m |
| Optical Zoom | 23X (20X for 2MP model) |
| Power Consumption | 12 W (23 W with IR on) |
| Operating Temperature | -40 °C to 60 °C |
| Dimensions (W×H×D) | 110 mm × 337 mm × 220 mm |
The cameras can illuminate objects up to 180 meters away.
Up to 300 preset positions can be stored.
They operate from –40 °C to 60 °C.
