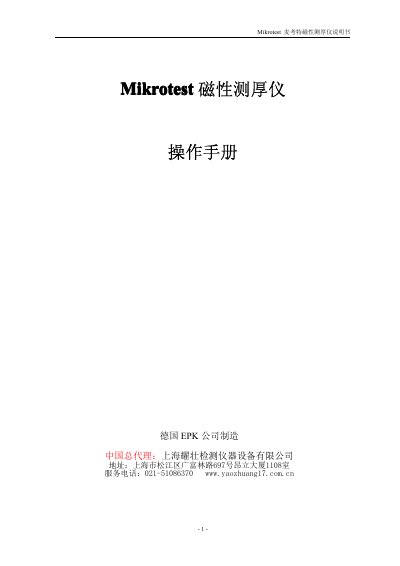

This manual provides operating instructions, technical specifications, maintenance guidelines, and troubleshooting information for Mikrotest Model 6 and 7…
The document serves as a user guide for the Mikrotest magnetic coating thickness gauge, specifically covering Models 6 (analog) and 7 (digital). It details the instrument's operating principles based on magnetic attraction force and explains how to measure non-magnetic coatings on ferrous substrates or nickel plating on non-ferrous ones. The manual includes specific instructions for measuring on flat, curved, and rough surfaces. This manual is written in Chinese.
| Model 6G Measurement Range | 0 - 100 um |
|---|---|
| Model 7F Maximum Thickness | 0 - 1500 um |
| Model 6G Accuracy | ±1 um or 5% |
| Model 7 Battery Requirement | One 6 V alkaline battery |
Measure several times on an uncoated surface to find an average initial value, then subtract this from your coated readings.
Error code E06 indicates that the battery power is low and needs to be replaced.
