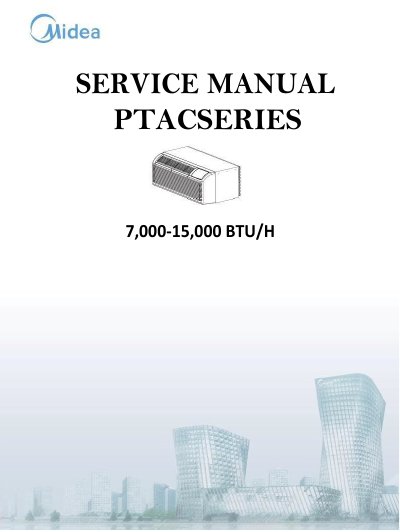

This service manual covers safety precautions, installation details, unit components, electronic functions, and troubleshooting for Midea PTAC air…
The document provides comprehensive instructions for the maintenance and repair of Midea PTAC series wall-mounted air conditioners. It includes detailed safety precautions regarding electrical work and installation, as well as specific guidelines for care, cleaning, and filter replacement to ensure efficient operation.
Technical sections cover the unit's electronic functions, including terms and definitions, protection features, fan motor operations, compressor logic, and DIP switch configurations. The manual also details troubleshooting procedures for error codes such as LE (Drive-by-wire controller failure) and provides wiring diagrams for 24V controllers.
| Cooling/Heating Capacity Range | 7,000-15,000 BTU/H |
|---|---|
| Unit Dimensions (No sleeve) | 42 x 15.9 x 20.9 inches |
| Unit Dimensions (With sleeve and rear net) | 42 x 16 x 23.1 inches |
| Controller Voltage | 24VAC |
The most important thing to do is to clean the filters once every two weeks as required.
Possible causes include wiring errors, a faulty wire controller, or if the wire controller does not match.
No, do not use bleach or abrasive materials as some commercial cleaners may damage plastic parts.
