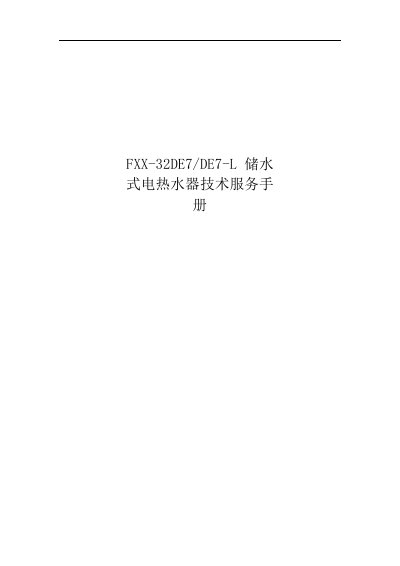

Service manual for Midea FXX-32DE7/DE7-L storage water heaters, covering installation, disassembly, operation, control functions, and troubleshooting codes.
This document is a technical service manual for the Midea FXX-32DE7/DE7-L storage water heater. It provides an overview of the product, lists component names and part numbers, and details the disassembly and assembly procedures for maintenance and repair. This manual is written in Chinese.
| Rated Power | 3200W |
|---|---|
| Voltage | 220V |
| Frequency | 50Hz |
| Tank Capacity | 60L/80L |
| Dimensions | 400*400*802mm |
If the temperature rise rate is greater than or equal to 15°C/min or 8°C/30s and the temperature exceeds 50°C, the system displays fault code E2.
The power switches between 3200W, 1100W, and 2100W.
