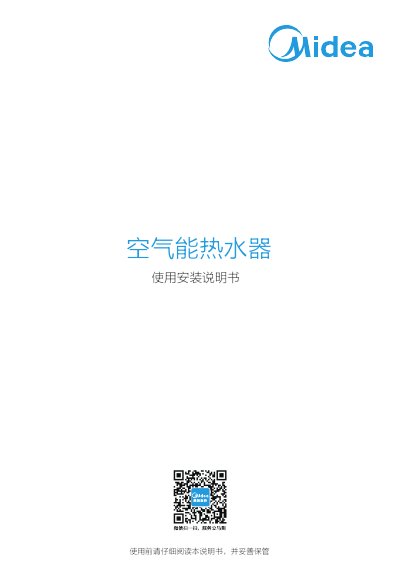

The Midea air source heat pump water heater guide provides safety warnings, component identification, installation steps, electrical wiring, operation…
This manual explains how to safely install and operate the Midea air source heat pump water heater. It covers safety warnings, required grounding, electrical specifications, pipe connections, and system commissioning procedures.
The guide also details regular cleaning, self‑maintenance, professional service options, and warranty information to help keep the unit running efficiently over its lifetime. This manual is written in Chinese.
| Power supply voltage | 220V~ 50Hz |
|---|---|
| Minimum circuit breaker rating | 20 A |
| Water inlet pressure range | 0.15–0.5 MPa |
| Required pipe diameter | DN15 PPR |
| Maximum pipe length without extra refrigerant | 3 m |
Open the drain valve, close the inlet valve, and turn the drain plug until no water flows out, then the tank is fully drained.
Ensure a reliable ground, install a residual‑current protective device, and use a dedicated circuit with a breaker rated at least 20 A.
Use DN15 PPR pipe with G1/2 threaded fittings and provide proper insulation for the pipe.
The inlet pressure must be between 0.15 MPa and 0.5 MPa; add a pressure‑reducing valve if higher, or a booster pump if lower.
