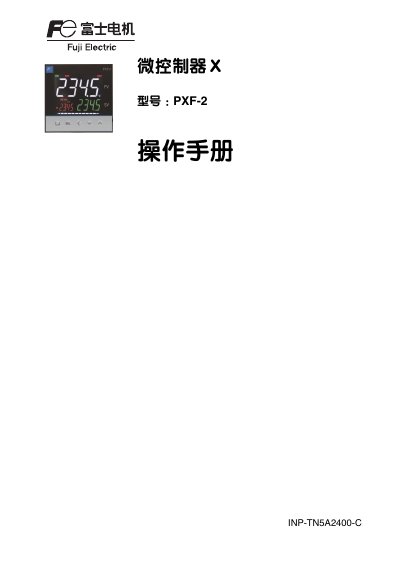

Microcontroller X PXF-2 Microcontroller Operation Manual

About this manual

The document is an operation manual for the Microcontroller X PXF-2 model. It covers essential usage information including safety warnings regarding electrical hazards and environmental conditions required for proper operation.

Key sections include detailed instructions on setting up the instrument, wiring configurations for various inputs (such as thermocouples and current detectors), and parameter configuration methods. The manual also addresses fault diagnosis and maintenance requirements. This manual is written in Chinese.

What's inside

• Safety Precautions
• Installation Conditions
• Wiring Instructions
• Parameter Settings
• Fault Diagnosis
• Maintenance

Frequently asked questions

What is the recommended fuse rating for the PXF-2 microcontroller?

The manual recommends a 250V AC, 0.1A Time-Lag fuse for AC power and a 400V DC/AC, 1A Time-Lag fuse for DC/AC24V power.

What is the maximum voltage for signal detection on this instrument?

You must not use the instrument for signal detection if the voltage exceeds 30Vr.m.s or 60Vdc.

What is the warranty period for the PXF-2 microcontroller?

Under normal usage conditions, the warranty period for the instrument and its accessories is 3 years.
