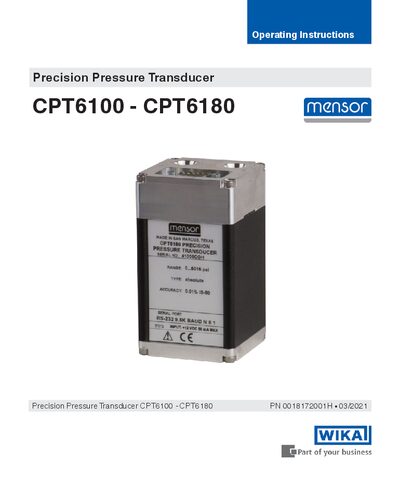

The Mensor CPT6100 and CPT6180 operating instructions provide safety information, specifications, installation, operation, calibration, and accessories for…
This manual covers the CPT6100 and CPT6180 digital pressure transducers, describing their construction, power requirements, sensor technology, and communication options. It includes safety notices, warranty details, and contact information for Mensor support.
Key sections include General Information, Product Description, Specifications, Installation steps, Operation procedures, Analog Output option, Calibration instructions, and a list of accessories and part numbers. Serial communication commands for configuration, zero/span adjustment, and data retrieval are also provided.
| Pressure Range (Gauge) CPT6100 | 0 … 0.36 to 0 … 6000 psig |
|---|---|
| Pressure Range (Gauge) CPT6180 | 0 … 14.5 to 0 … 6000 psig |
| Accuracy CPT6100 | 0.01 % FS |
| Accuracy CPT6180 | 0.01 % IS‑50 |
| Resolution | CPT6100: 6 digits, CPT6180: 7 digits |
| Operating Temperature Range | 0 … 50 °C (32 … 122 °F) |
| Calibration Interval | CPT6100 – 180 days; CPT6180 – 365 days |
| Overpressure Limit | 150 % FS |
No, the transducers are not explosion‑proof and should not be installed in intrinsically safe areas.
The transducers communicate over a serial bus that can be configured as either RS‑232 or RS‑485.
