Mellanox SN2700 1U Switch Systems Hardware User Manual

The Mellanox SN2700 1U Switch Systems Hardware User Manual explains installation, configuration, and troubleshooting of the Ethernet switch.

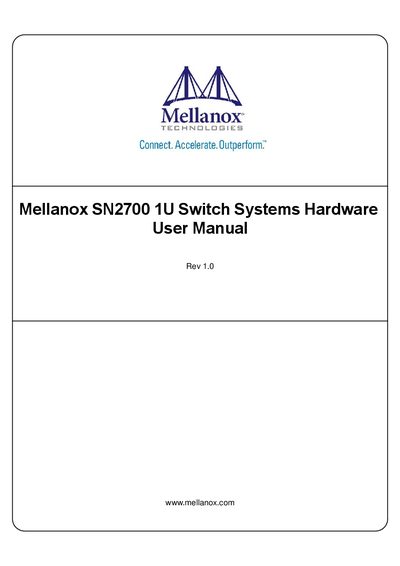

Mellanox SN2700 1U Switch Systems Hardware User Manual - cover page
Brand
Mellanox
Category
Network Switches
Document type
User Manual
Language
English
Pages
98
File format
PDF
File size
2.8 MB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
32E11154469B8B4C26D963BE4B9B9219
PDF
Mellanox SN2700 1U Switch Systems Hardware User Manual PDF

About this manual

This manual provides installation and basic usage instructions for the Mellanox SN2700 1U Switch Systems. It covers safety warnings, hardware overview, specifications, and replacement part information for IT managers and system administrators.

The guide details mounting options, cable installation, power‑on procedures, management interfaces (USB and console), LED indicators, software upgrade steps, and a troubleshooting section to help resolve common issues.

What's inside

  • Introduction
  • Installation
  • Software Management
  • Interfaces
  • Troubleshooting
  • Specifications
  • Accessory and Replacement Parts
  • Safety Warnings

Specifications

Mechanical Size1.72" (H) x 16.84" (W) x 27" (D)
Mounting19" Rack mount
Weight (1 PSU)10.23 kg
Weight (2 PSUs)11.1 kg
Port Speed40/56/100 GbE per port
Power Input Voltage100‑240 V AC
Maximum Power (passive cables)323 W
Maximum Power (active cables)414 W
Switching Capacity6.4 Tb/s
CPUIntel Celeron 1047UE (x86)

Frequently asked questions

What are the power specifications for the SN2700?

The switch accepts 100‑240 V AC input and consumes up to 323 W with passive cables or 414 W with active optical cables.

How many ports does the SN2700 provide and at what speeds?

It has a 32‑port QSFP28 cage, each supporting 40/56/100 GbE per port.

Which management interfaces are included on the SN2700?

The switch provides two USB management ports and a console (RS232) port.

Download PDF (2.8 MB)
