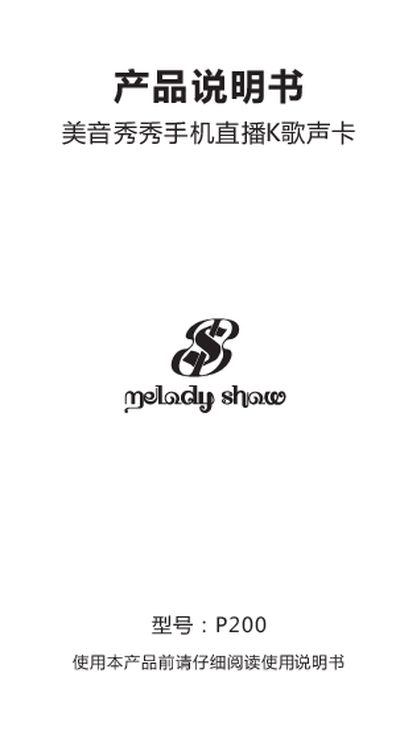

User manual for the Meiyin Xiuxiu P200 sound card, detailing setup, controls, and specifications for mobile live streaming and karaoke.
This manual introduces the Meiyin Xiuxiu P200 mobile live karaoke sound card, describing its hardware layout, control buttons, and supported audio modes such as explosion, voice change, and reverb. It also explains the various connection ports for microphones, earphones, accompaniment sources, and smartphones.
The guide provides step‑by‑step instructions for powering on the device, connecting it to a phone, adjusting microphone and monitor volumes, switching audio effects, and using the built‑in live‑streaming features. Technical specifications, including interfaces, signal‑to‑noise ratio, battery capacity, and dimensions, are listed at the end. This manual is written in Chinese.
| Audio Interfaces | Earphone (3.5mm), Microphone (3.5mm), Accompaniment (3.5mm), Phone (3.5mm), Charging (Micro USB), Data (Micro USB) |
|---|---|
| Signal‑to‑Noise Ratio (D/A) | 108 dB |
| Dynamic Range (D/A) | 108 dB |
| Total Harmonic Distortion (D/A) | -92 dB |
| Battery Capacity | 1600 mAh |
| Charging Input | DC 5V / 1.5A |
| Material | Aluminum alloy |
| Dimensions | 122 x 55 x 10.8 mm |
| Weight | 115 g |
Press and hold the power switch for about 1.5 seconds to power on the device.
Use the provided audio cable to connect the sound card’s phone interface to the phone’s headphone jack; for iPhone/iPad, use the supplied data cable for high‑quality digital stereo streaming.
Press the "Mic+" button to increase the microphone volume up to level 8, or press "Mic‑" to decrease it down to level 0.
