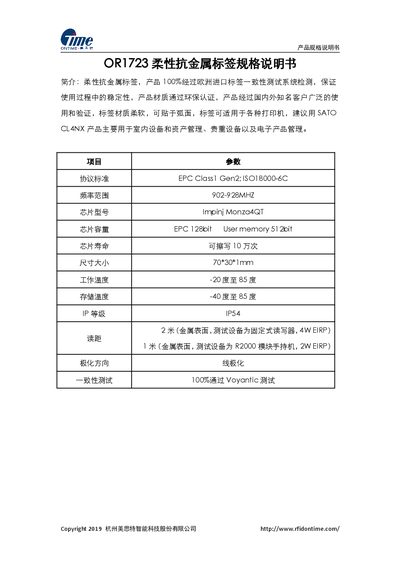

Specification sheet for the OR1723 flexible anti‑metal RFID tag with technical parameters and performance data.
The OR1723 flexible anti‑metal tag is designed for indoor equipment, asset management, valuable devices and electronic product tracking. It passes European import tag consistency testing and environmental certification, and can be printed on various printers such as the SATO CL4NX.
The sheet lists the tag’s protocol standards, frequency range, chip details, dimensions, temperature limits, IP rating, read distances, polarization, and test results, providing all key data needed for integration and deployment. This manual is written in Chinese.
| Protocol Standard | EPCClass1Gen2; ISO18000-6C |
|---|---|
| Frequency Range | 902‑928 MHz |
| Chip Model | Impinj Monza4QT |
| Chip Capacity | EPC 128 bit |
| User Memory | 512 bit |
| Chip Lifetime | 10 000 erase cycles |
| Size | 70 × 30 × 1 mm |
| Operating Temperature | -20 °C to 85 °C |
| Storage Temperature | -40 °C to 85 °C |
| IP Rating | IP54 |
| Read Distance (metal surface, fixed reader) | 2 m |
| Read Distance (metal surface, handheld) | 1 m |
| Polarization Direction | Linear |
| Consistency Test | 100 % passed Voyantic test |
The tag operates from –20 °C up to 85 °C.
It has an IP54 rating.
Up to 2 meters.
The tag uses an Impinj Monza4QT chip.
