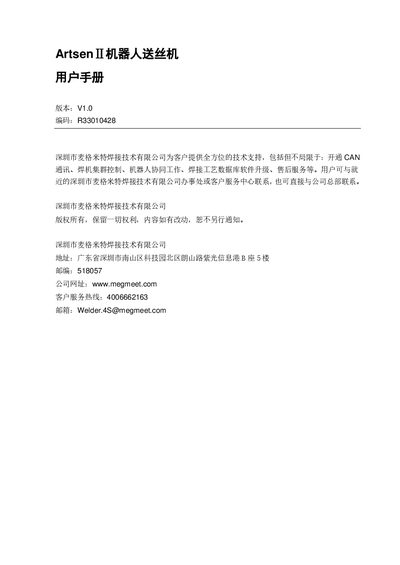

User manual for the Megmeet ArtsenⅡ robot wire feeder covering installation, wiring, troubleshooting and maintenance.
This manual provides detailed instructions for installing, wiring, and operating the ArtsenⅡ robot wire feeder. It includes safety warnings, connection diagrams, and step‑by‑step procedures for setting up the feeder with compatible welding power sources and robot systems.
The guide also contains fault diagnosis tables, recommended maintenance schedules, and a parts ordering list, helping users keep the equipment running reliably and safely. This manual is written in Chinese.
| Rated input voltage | - DC8.5V±5% |
|---|---|
| Rated current | 3.5A |
| Rated voltage | 36V |
| Wire feed speed | 1.4–24 m/min |
| Wire wheel diameter | 0.8–1.6 mm |
| Drive device | Four‑wheel wire feed drive |
| Welding gun interface | European type |
The rated input voltage is - DC8.5V±5%.
Turn the pressure‑rod knob clockwise to increase pressure and counter‑clockwise to decrease it.
For solid wire, set the front wheel pressure to 1.5‑3 and the rear wheel to 1‑3.
