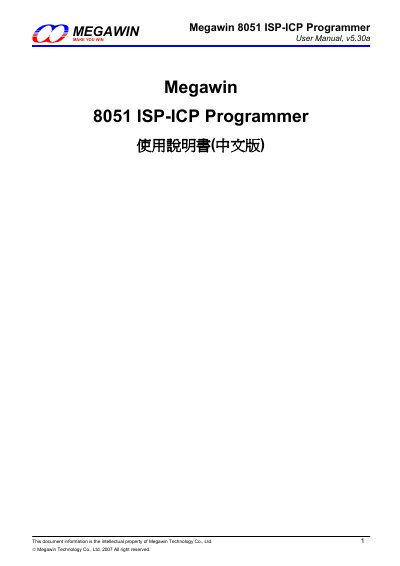

Megawin 8051 ISP-ICP Programmer User Manual

This manual covers the setup, installation, and usage of the Megawin 8051 ISP-ICP Programmer for in-system and in-circuit programming of 8051 microcontrollers.

Brand: Megawin
Category: microcontrollers
Document type: User Manual
Language: Chinese
Pages: 31
File format: PDF
File size: 1.6 MB
Published: 14 October, 2026
Updated: 14 October, 2026
Model: 8051
MD5 checksum: AAD928434A825BCF875B6897EC7A08E3
PDF: Megawin 8051 ISP-ICP Programmer User Manual PDF

About this manual

The Megawin 8051 ISP-ICP Programmer is a USB-based tool that combines In-System Programming (ISP) and In-Circuit Programming (ICP) functions. It allows users to program 8051 microcontrollers without removing them from the circuit board, supporting various MCU series including MPC89, MPC82, and MG84 families. The device can also operate independently of a computer by storing program data in its internal memory. This manual is written in Chinese.

What's inside

Features
ISP vs ICP Comparison
MCU Setup
Installation
Operation Modes
ISP Usage
ICP Usage
Information Area
Precautions

Frequently asked questions

What are the supported MCU models for ISP programming?

The supported models are MPC89L(E)51/52/53, MPC89L(E)54/58/515, MPC82L(E)52, MPC82L(E)54, MPC82G516, MG84FL54, and MG84FL516.

What is the required ISP memory size for MPC82L(E)54 chips?

The ISP memory must be set to 1.5K bytes for MPC82L(E)54 chips.
