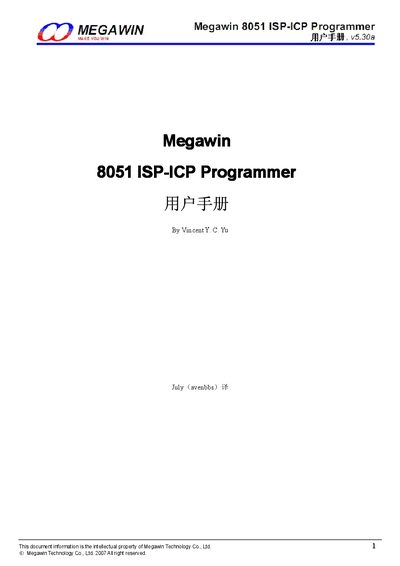

The MegaWin 8051 ISP-ICP Programmer User Manual provides installation, configuration, and operation instructions for both ISP and ICP programming modes.
The MegaWin 8051 ISP-ICP Programmer combines In‑System Programming (ISP) and In‑Circuit Programming (ICP) functions in a single USB‑stick device. It can program supported 8051‑based MCUs either from a PC or autonomously without host intervention.
The manual covers chip configuration, driver and application installation, GUI usage for various MCU families, programming steps, special notes for ISP and ICP modes, and how to dump or update information stored in the target device. This manual is written in Chinese.
| Supported MCU series | MPC89L(E)51/52/53, MPC89L(E)54/58/515, MPC82L(E)52, MPC82L(E)54, MPC82G516, MG84FL54, MG84FL516 |
|---|---|
| ISP program area size | 1 KB (1.5 KB for MPC82L(E)54) |
| ISP interface pin | P3.1 (DTA) |
| ICP interface pins | SDA and SCL |
| Driver version (Windows Vista) | 0E6A030D_8051ISPICP_v3.00.inf |
Select “Load File to Programmer Buffer” and choose the appropriate ISP_Code binary (e.g., ISP_Code_v5.00.bin for MPC89/82 series).
The ISP mode uses the P3.1 pin of the target MCU as the DTA (data) line.
Yes, the device can work independently after the ISP code is pre‑loaded into its non‑volatile memory.
Set the buffer start address to 0x3800‑0x3BFF (1 KB ISP code area).
