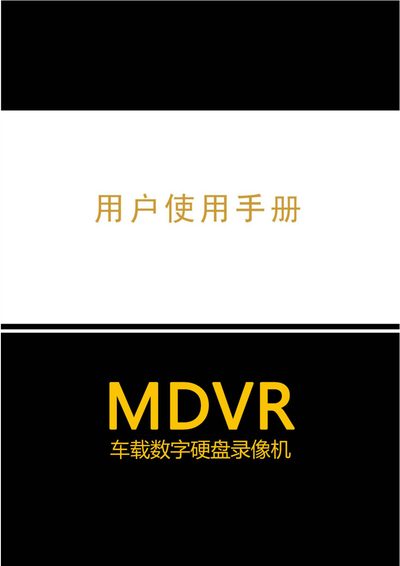

This manual provides safety precautions, installation, connection, menu settings, and troubleshooting for the MDVR device.
The MDVR User Manual guides users through safe handling, installation, and operation of the mobile digital video recorder. It covers safety warnings, hardware overview, wiring, and system initialization.
Key sections include detailed instructions for connecting power, cameras, GPS, 3G/Wi‑Fi antennas, configuring menus, setting up recording modes, network settings, alarm configuration, and a comprehensive FAQ for common issues. This manual is written in Chinese.
| Output voltage | 12V |
|---|---|
| Output current | 1.5A |
| Power input voltage range | 8‑36V |
| Hard drive capacity | up to 500 GB (2.5" SATA) |
| Video compression format | H.264 |
| Audio compression format | G.711 |
| Video inputs | 4 channels |
| Video outputs | 1 channel |
| USB 2.0 interface | Data backup and firmware upgrade |
| Communication interfaces | RS232/RS485 |
Check that the hard drive is properly connected to the SATA data cable inside the drive bay.
Make sure the remote’s battery is charged and that it is aimed at the IR receiver; replace the remote if it is damaged.
Yes, the system supports recording during video playback.
