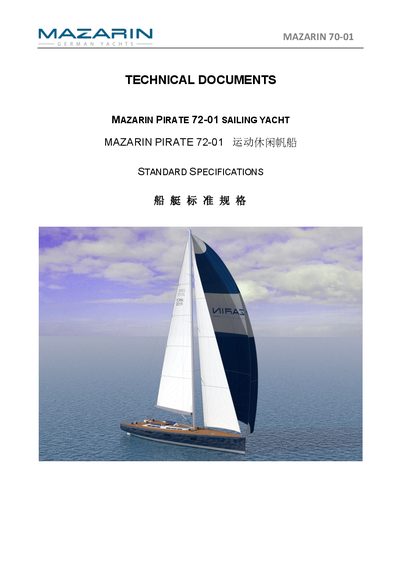

Technical specification sheet for the Mazarin Pirate 72-01 sailing yacht, covering dimensions, performance, systems and interior features.
The Mazarin Pirate 72-01 is a 21.96 m sailing yacht designed for 6‑8 guests plus crew. It features a 5.68 m beam, 3.0 m draft, and a displacement of 35,000 kg. The hull is a vacuum‑infused FRP sandwich with carbon‑fiber reinforcement and a standard keel with an L‑bulb ballast of 11,680 kg.
The yacht is equipped with a Volvo D4‑180 180 HP diesel engine, a 13 kW Fischer Panda generator, twin‑wheel steering, extensive electrical and plumbing systems, air‑conditioning, and a full suite of navigation, entertainment and interior amenities. All specifications are subject to change without notice. This manual is written in Chinese.
| Length Overall | 21.96 m |
|---|---|
| Length of Hull | 21.33 m |
| Beam | 5.68 m |
| Draft | 3.0 m |
| Displacement (full load) | 35,000 kg |
| Ballast (keel) | 11,680 kg |
| Fuel Capacity | 1,027 L |
| Fresh Water Capacity | 600 L |
| Hot Water Heater | 11 Gal |
| DC Power | 24 V |
| Shore Power | 11.5 kVA 230 V 50 A |
| Air‑Conditioning | 41,000 BTU |
It is designed for 6‑8 guests plus crew.
It features a twin‑wheel steering system with two leather‑covered wheels.
The fuel tanks hold a total of 1,027 L of diesel.
