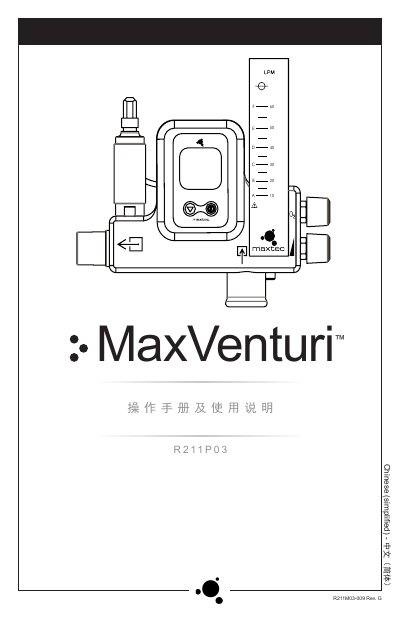

This manual provides operating instructions, installation, calibration procedures, and maintenance guidelines for the Maxtec MaxVenturi oxygen analyzer…
The document is a user guide for the Maxtec MaxVenturi oxygen analyzer, specifically covering models R211P03 and R211M03-009. It details system components, safety warnings regarding flammable anesthetics and MRI environments, and installation steps including sensor setup.
Key operational sections cover calibration using indoor air or 100% oxygen, adjusting flow and oxygen settings, and troubleshooting common errors. The manual also specifies maintenance requirements such as weekly calibration checks and replacing the control valve O-ring every two years. This manual is written in Chinese.
| Waterproof Protection | IPX1 |
|---|---|
| Operating Mode | Continuous Operation |
| Sterilization Method | See Chapter 7.0 |
| Flammable Anesthetic Mixture Suitability | Not Suitable |
| O-ring Replacement Interval | Every 2 Years |
The device should be calibrated weekly, especially if environmental conditions such as temperature or humidity change significantly.
The device can be calibrated using 100% oxygen or ambient air (20.9% oxygen concentration).
No, it is not suitable for use in environments where flammable anesthetic mixtures are present due to fire or explosion risks.
