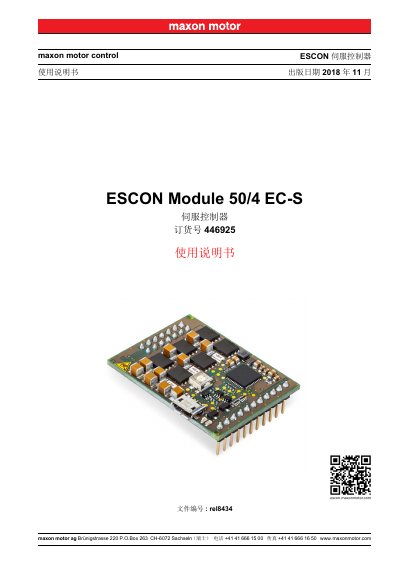

User manual for the maxon motor ESCON Module 50/4 EC-S servo controller, covering installation, setup, safety and technical specifications.
This manual provides detailed information for professional technicians on the ESCON Module 50/4 EC-S servo controller, including safety regulations, installation steps, wiring diagrams and a motherboard design guide. It also lists the technical data and applicable standards for the device.
The document is intended for qualified personnel and includes guidelines for safe operation, configuration of analog and digital inputs/outputs, USB interface usage, and environmental limits. It references the ESCON Studio software for PC‑based configuration via USB. This manual is written in Chinese.
| Rated working voltage | +VCC 10 ~ 50 VDC |
|---|---|
| Absolute working voltage | +VCC min / +VCC max 8 VDC / 56 VDC |
| Maximum output voltage | 0.96 × +VCC |
| Output current (continuous / peak) | 4 A / 12 A |
| PWM frequency | 53.6 kHz |
| Maximum efficiency | 97 % |
| Maximum speed (brushless EC motor) | 120 000 rpm |
| Size (L × W × H) | 43.2 × 31.8 × 12.7 mm |
The controller operates with a rated working voltage of +VCC 10 ~ 50 VDC.
The controller provides a USB 2.0 / USB 3.0 full‑speed interface for PC configuration via ESCON Studio.
The device can operate from –30 °C to +45 °C, with an extended range up to +65 °C at reduced power.
