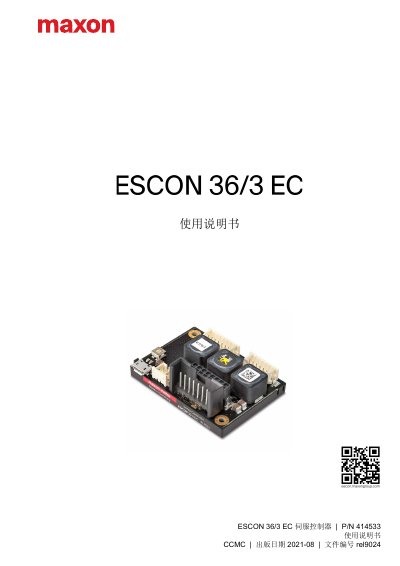

User manual for the maxon ESCON 36/3 EC servo controller covering safety, setup, wiring and technical specifications.
This manual provides safety guidelines, installation instructions, and configuration steps for the ESCON 36/3 EC servo controller. It is intended for qualified technical personnel who need to integrate the controller into a complete system.
The document also lists the electrical parameters, environmental limits, connector pinouts, and compliance standards required for proper operation and maintenance of the device. This manual is written in Chinese.
| Rated voltage | 10 ~ 36 VDC |
|---|---|
| Absolute voltage range | 8 VDC ~ 38 VDC |
| Maximum continuous output current | 2.7 A |
| Maximum short‑term output current | 9 A (<4 s) |
| PWM frequency | 53.6 kHz |
| Maximum efficiency | 95 % |
| Maximum speed | 150 000 rpm |
| Operating temperature range | -30 °C ~ +45 °C (standard) |
| Extended temperature range | -30 °C ~ +78 °C |
| Dimensions (L×W×H) | 55 × 40 × 19.8 mm |
The controller can deliver up to 2.7 A continuously and up to 9 A for short bursts of less than 4 seconds.
The device operates from –30 °C to +45 °C under standard conditions and up to +78 °C in the extended temperature range.
